INQUIRYProduct Feature

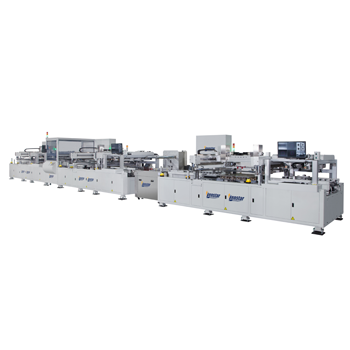

- Consist of three automatic machine and turning section,with loading section. aligning section. printing section. unloading section of first printer(hole plug), loading section. aligning section. printing section. unloading section .turning section of second printer and loading section. aligning section. printing section. unloading section of third printer.
- Auto-compensation, it achieve two knife solder blocks printing with CCD memory function.
- Transmission mode: Fixed table and clamp the board-edge to transmit the product.
- CCD precision of alignment ± 0.005 mm, velocity of alignment within 2 seconds.
Product Specification
| Item | Specification |
|---|---|
| Power | AC 220V, 380V, 3PH, Power consumption 21KW |
| Working Heigh | 950±50 mm |
| Compressed Air | 6~8kg/cm² 、200 L/Min |
| Printing Area | Min:375mm x 375 mm ; Max : 715mm x 600 mm |
| Frame Size | Min : 1000 x 900mm ; Max : 1100 x 1100mm |
| Machine Size | L13200*W2100 H2000mm |
